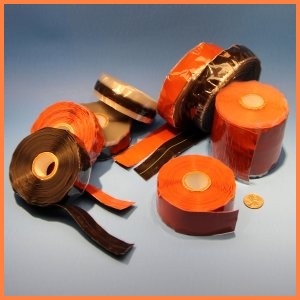

Silicone Tapes

Silicone Rubber Self Fusing Electrical Tape with National NSN / NATO Stock Number MIL Spec Tapes

365°F / 180°C Continuous Exposure: Higher Intermittent

FlameShieldä silicone rubber self-fusing compression tapes meet many MIL and proprietary specifications (such as MIL-I-46852 and AA-59163) and are used for a variety of critical electrical wiring and cable splicing and protection jobs. Especially suited for aviation and marine environments, as well as outdoor weathering environments.

The tape has no adhesive, but sticks to itself (self-fuses or self amalgamating) when stretched and wrapped onto itself. The tapes starts curing within minutes, and after several hours cannot be unwound or removed without using a sharp knife or blade. This tape makes a waterproof, weatherproof and air tight protection.

These tapes may be either red or black although some are other colors such as white, green, blue. Most Type II tapes have a center guideline.

The guideline stripe in the center which aids in achieving a 50% spiral wrap and provides a smooth surface on spiral wrapping, preventing the tape wrap area from snagging when pulling a wire or cable through a bundle or over objects or openings.

This tape is also used to wrap hydraulic connections and to make vibration resistant bumpers and spacers for wiring, cable, hose, pipes and lines. This tape is used to wrap and hold insulation in place on hot air ducts.

CALL FOR PRICING

These tapes are not interchangeable. The NSN number specifies other parameters of the tape such as thickness, profile, width, reinforcement, rubber composition, etc.

NSN Numbers: Color Our Part Number

5970-00-082-3226               Black                           T-SR-NSN-00-082-3226
5970-00-177-1627               Black                           T-SR-NSN-00-177-1627
5970-00-446-3928               Black                           T-SR-NSN-00-446-3928
5970-00-446-8928               Red                              T-SR-NSN-00-446-8928
5970-00-480-1329               Red                              T-SR-NSN-00-480-1329
5970-00-782-5056               Red                              T-SR-NSN-00-782-5056
5970-00-839-0824               Red                              T-SR-NSN-00-839-0824
5970-00-841-1172               Red                              T-SR-NSN-00-841-1172
5970-00-949-4846               Red                              T-SR-NSN-00-949-4846
5970-00-955-9976               Black                            T-SR-NSN-00-955-9976
5970-01-140-5672               Red                               T-SR-NSN-01-140-5672

5970-01-142-8454 Red T-SR-NSN-01-142-8454

5970-01-147-3595               Red or Black               T-SR-NSN-01-147-3595
5970-01-250-8756               Red                               T-SR-NSN-01-250-8756
5970-01-259-5830               Red or Black                T-SR-NSN-01-259-5830

5970-01-263-0373 Red T-SR-NSN-01-263-0373

5970-01-263-3931 Black T-SR-NSN-01-263-3931

5970-01-273-6030 Red or Black T-SR-NSN-01-273-6030
5970-01-276-5277 Red or Black T-SR-NSN-01-276-5277

5970-01-286-7456               Red                               T-SR-NSN-01-286-7456
5970-01-342-8289               Black                             T-SR-NSN-01-342-8289
5970-01-396-1601               Red                               T-SR-NSN-01-396-1601
5970-01-432-6018               Red                               T-SR-NSN-01-432-6018
5970-01-491-8992               Black                             T-SR-NSN-01-491-8992
5970-01-495-5211               Black                             T-SR-NSN-01-495-5211
5970-01-541-9092               Red or Black               T-SR-NSN-01-541-9092
9320-01-552-7024               Red or Black               T-SR-NSN-01-552-7024
5970-01-560-3208               Red or Black               T-SR-NSN-01-560-3208
5970-01-600-6091               Red                               T-SR-NSN-01-600-6091
8030-01-587-1885               Red                               T-SR-NSN-01-587-1885
5970-14-459-8605               Black                             T-SR-NSN-14-459-8605

View or Download PDF Catalog Page with Pricing
